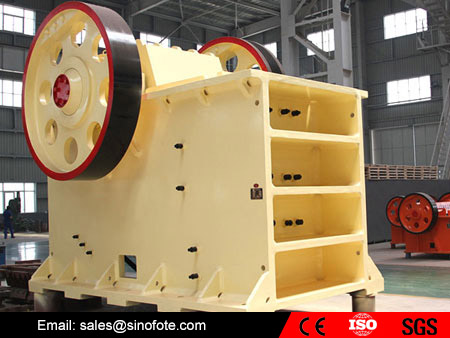

PE Series Large Capacity Rock Jaw Crusher

Price: 1285.0~250000.0 USD
Payment Terms: T/T,L/C,D/A,D/P
Special Groups: Jaw Crusher (1)
Place of Origin: China, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: PE/PEX
Production Capacity: 1-2200t/h
Delivery Date: 0-20 days delivery
Type: Crusher
Name: PE Series Large Capacity Ro...
Production capacity: 1-2200 t/h
Weight: 0.8-150.6t
Certifications: BV,CE,GOST,ISO9001
Installation: Under technical guidance
Means of Transport: Ocean
Packing: Standard containers, machin...
Application: Ore
Brand Name: Henan Fote
Feeding size: 120-1500 mm
Motor power: 5.5-380kw
Dimensions(L*W*H): 720*660*850-6210*4013*4716 ...
Gurantee: 1 Year
Market: Africa, Europe, Asia,etc

rock jaw crusher:
1.feeding size:120-1500mm
2.high manganese cast steel
3.0-20 days delivery
4.ISO,CE,BV

PE series large capacity rock jaw crusher Overview:

1.PE series large capacity rock jaw crusher is suitable for primary and secondary crushing for all and rocks with
compressive strength less than 320 MPa.
2.In construction, road and railway building, construction and other industries are widely applied to
crush high hardness, mid hardness and soft rocks and ores such as slags, construction materials, marble, etc.
3.PE/PEX jaw crusher plant can
 reach the crushing ratio of 4-6 and the shape of final product is even.



PE series large capacity rock jaw crusher structural advantages:

1,World-class manufacturing processes and most advanced production materials.
2,High-quality steel castings , driven by two large steel flywheel. Forging stock processes heavy eccentric shaft resulting superior reliability.
3,Bearing housings of jaw crusher for sale is overall steel structure, ensuring its complete fit with the crusher frame and greatly enhancing its radial strength.
4,Finite element analysis techniques,making the crusher a higher strength.
5,Adjustment of the discharge port is more quick and convenient.
6,Larger, more durable eccentric shaft bearings and effective labyrinth sealing make the bearings' life long.



PE series large capacity rock jaw crusher characteristics:

1.Deep crushing cavity without dead zone.
2.The gasket type adjusting device of the discharge gate is characterized by reliable performance, convenient use, large adjusting range, and improves the equipment flexibility.
3.The lubricating system of jaw crusher is safe and reliable.
4.A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed.
5.To meet different client needs, the discharge gate is designed with a large adjusting range.
6.This machine causes low noise and creates little dust.



PE series large capacity rock jaw crusher technical datas:


Model

Feed opening
(mm)

Max.feeding size
(mm)

Adjusting range of discharge opening
(mm)

Processing capacity
(t/h)

Rotation speed of eccentric shaft
(r/min)

Motor power
(kw)

Total weight
(t)

Dimensions
(L×W×H)
(mm)

PE-150×250150×25012510-401-32505.50.8720×660×850
PE-200×300200×30018015-502-62607.51.2910×750×990
PE-200×350200×35018018-703-10260111.51000×870×990
PE-250×400250×40021020-605-20300152.81300×1090×1270
PE-400×600400×60034040-10016-602753071730×1730×1630
PE-500×750500×75042550-10040-11027555121980×2080×1870
PE-600×750600×750500150-20080-2402755515.82070×2000×1920
PE-600×900600×90050065-16050-18025055172190×2206×2300
PE-750×1060750×106063080-140110-320250110292660×2430×2800
PE-800×1060800×1060640130-190130-33025011029.82710×2430×2800
PE-830×1060830×1060650160-220150-33625011030.72740×2430×2800
PE-870×1060870×1060660200-260190-33625011031.52810×2430×2800
PE-900×1060900×1060685230-290230-390250110332870×2420×2940
PE-900×1200900×120075095-165220-450200110523380×2870×3330
PE-1000×12001000×1200850195-265315-500200110553480×2876×3330
PE-1200×15001200×15001020150-350400-800180160-220100.94200×3300×3500
PE-1500×18001500×18001200220-350500-1000180280-3551225160×3660×4248
PE-1600×21001600×21001500300-4001300-2200160350-380150.66210×4013×4716
PEX-150×750150×75012018-488-25320153.81200×1530×1060
PEX-250×750250×75021025-6013-35330305.51380×1750×1540
PEX-250×1000250×100021025-6016-523303071560×1950×1390
PEX-250×1200250×120021025-6020-61330379.72140×1660×1500
PEX-300×1300300×130025020-9016-1053005515.62720×1950×1600


Jaw crusher is used in stone production line:



Successful Cases:

1.Main Equipment for 100 t/h Crushing Production Line:
a.380*95 vibrating feeder
b.600*900 jaw crusher
c.PF1214 impact crusher
d.4YK1854 vibrating screen.

2.The limestone production line:
a.GZD750*2500 Vibrating feeder
b.PE500*750 Jaw crusher
c.PF1007 Impact crusher
d.4YK1237 Vibrating screen
e.B500*17m Belt conveyor
f.2 sets of B500*19m Belt conveyor
g.4 sets of B500*15m Belt conveyor
h.Finished size: 0-10mm, 10-20mm, 20-30mm


Delivery

We have developed long and good relationship with many shipping agents. Ocean freight partners are:
APL, COSCO, OOCL, CSCL, MSC, etc. and train shipping is also available. The perfect shipping way and best service with lowest price are always provided for customers.

Our Service Philosophy

1.Pre-sale services: enthusiasm
Provide you the prophase plan, process flow design and manufacturer equipment according to your special demand.

2.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

3.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
